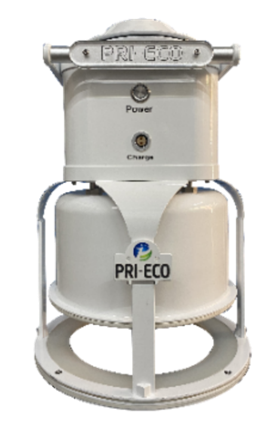

PRI-8601 Smart Chamber is a portable, self-powered hub to connect with various analyzers to assess the spatial variability of soil gas fluxes. Connectivity is up to three analyzers through RS-232 port and computes real-time fluxes.

PRI-8601 is compatible with both traditional NDIR sensor and new-generation laser multi-gas analyzer. Onboard pressure sensors enable real-time environmental condition measurements thus providing true concentration readings and reliable measurement of the target gases in a wide range of locations. Patented pressure vent (ZL201420354126.4) minimize wind influence, enable scientists to get more accuracy soil flux data.

• Sophisticated hub for various analzyer to mesuare soil flux
• Self-powered with long-lasting batteries
• Patented pressure vent minimizes soil disturbance and pressure perturbation
• Built-in sampling circular line with progressive multihole for uniform sampling

Specification

PRI-8601 Unit
Humidity	<99% R.H.	Size	473 × 372 × 191 mm
Data Output	TF Card & PAD	Weight	~ 8 kg
Automatic Soil Flux Chamber
Pressure Vent	Patented	Covered Area by Chamber	315 cm2
Soil Temp. Measurement Range	-40 ~ +85 °C	Chamber Volume	3750 cm3
Soil Temp. Precison	± 0.2 °C	Size of Chamber	220 mm (D) x 120 mm (H)
Soil Water Measurement Range	0 ~ 100%	Whole Size of Chamber	260 mm (D) x 375 mm (H)
Soil Water Accuracy	± 3%	Weight	4.8 kg

Specifications subject to change without notice

Manufacturer：PRI-ECO, CHINA
